Efficient Lithium Battery (ELB) Series 高效鋰電池系列

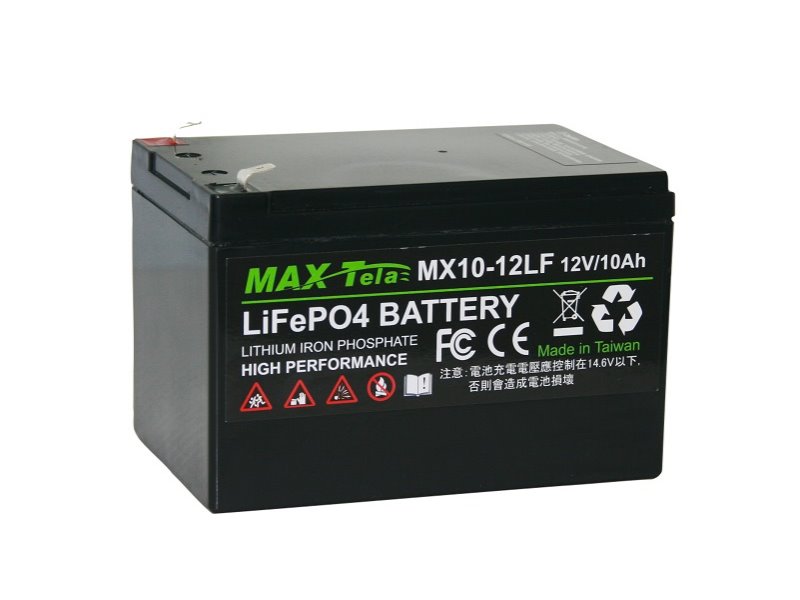

Product name：12V 10Ah Efficient LFP Battery
Model name：MX10-12LF

Maxtela ELB LiFePO4 battery series is designed to be powerful to suit various smaller deep cycle applications, such as electric wheelchairs and electric bikes. The MX10-12LF is a lithium iron phosphate (LiFePO4) battery offering more power and less weight compared to the battery corresponding to lead-acid. LiFePO4 batteries also provide 10x longer life than lead-acid batteries, making such battery the best choice when draining the energy for the deep-cycle applications

Maxtela 12V lithium iron phosphate battery (LiFePO4) performs better than traditional sealed lead-acid batteries in a variety of residential, commercial, and small industrial power applications

Moreover, Maxtela LiFePO4 batteries are designed with the trending technology to offer outstanding solutions, including improved discharge and charge rating efficiency, temperature control, longer life span and capability to deep cycle operation while maintaining the power.

Features：

• Lightweight, high-performance, safe and reliable lithium battery, especially developed for replacinglead-acid battery.
• Maxtela ELB LiFePO4 Battery Series intelligently protect against over-discharge, over-charge, polary-reverse, low-voltage and short-circuit.
• LiFePO4 Batteries can be discharged to 100% and also can be discharged at a high rate of up to 1C for most of models while maintaining a high energy capacity.
• More than 2,500 cycles at a depth of discharge of 80%, which compared to lead-acid batteries' utility is higher than up to 10 times more of cycle life.
• Suitable for applications requiring stable power, including Alarm Systems, Backup power systems, Electric Bicycles, Ride-on Toys, Solar lights, and much more.

Specification：

Nominal Voltage基本電壓: 12.8V
Rated Capacity額定容量: 10Ah
Stored Capacity儲存容量: 128Wh
Cell Type電芯型態: LiFePO4
Cell Voltage電芯電壓: 3.2V
Charge Voltage充電電壓: 14.6 V max
Recommended Discharge
Cut-off Voltage放電截止電壓: 10.8V

BMS: YES

Charge Mode充電模式: CC/ CV
Self Discharge Rate自放電率: ≤3% /month
Charge Temperature充電溫度: 0°C~ 45°C (32°F~113°F)
Discharge Temperature放電溫度: -20°C ~ 60°C (-4°F~140°F)
Discharge Humidity放電濕度: RH ≤ 85%
Storage Temperature儲存溫度: -10°C ~ 40°C (14°F~104°F

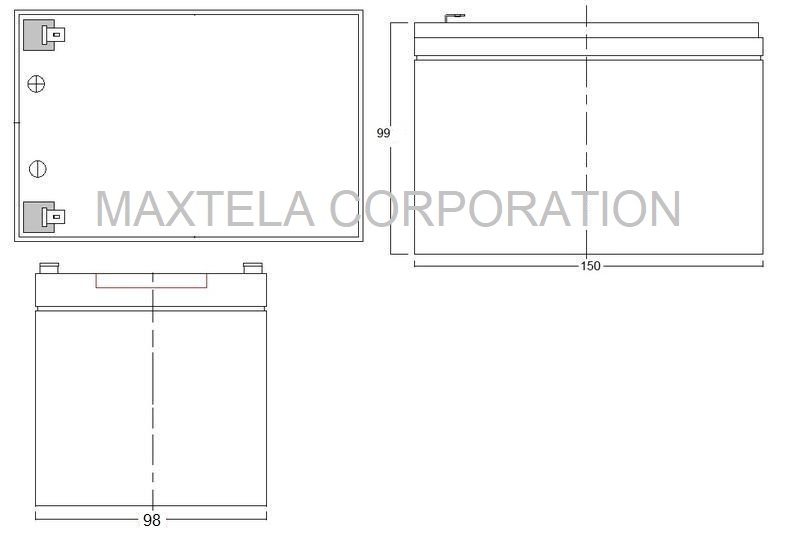

Dimension (Lx Wx H)尺寸: 150x99.5x99.7mm /5.91”x 3.92”x 3.93”

Weight重量: 1450g (51.1 oz)

Terminal Type端子類型: T2 FASTON TYPE
